Belt Cleaner

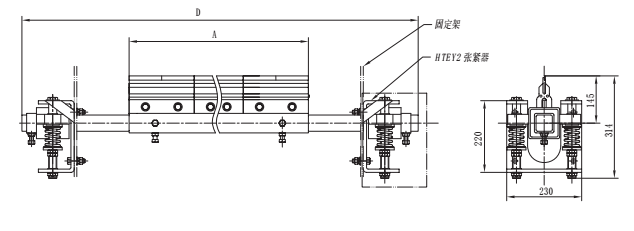

Type：HRC91-XXXX(Y2X)Reversing Cleaner HRCXX-XXXX(XXX)＞＞Product assembly Diagram＞＞Product SpecificationsTypeBelt width(m
| Type |
Belt width
(mm) |
Blade width
(mm) |
Quantity of blade |
Length of secondary frame
(Square tube50×50×5) D
(mm)
|
Weight
(kg)
|
| HRC91-0500(Y2X) | 500 | 400 | 2 | 1200 | 42 |
| HRC91-0650(Y2X) | 650 | 600 | 3 | 1400 | 47 |
| HRC91-0800(Y2X) | 800 | 800 | 4 | 1600 | 51 |
| HRC91-1000(Y2X) | 1000 | 1000 | 5 | 1800 | 56 |
| HRC91-1200(Y2X) | 1200 | 1200 | 6 | 2000 | 61 |
| HRC91-1400(Y2X) | 1400 | 1400 | 7 | 2300 | 66 |
| HRC91-1600(Y2X) | 1600 | 1600 | 8 | 2500 | 71 |
| HRC91-1800(Y2X) | 1800 | 1800 | 9 | 2700 | 76 |
| HRC91-2000(Y2X) | 2000 | 2000 | 10 | 2900 | 81 |
| HRC91-2200(Y2X) | 2200 | 2200 | 11 | 3100 | 86 |
|
Note：X in the bracket indicates the use occasion or attributes,“C”cold-resistant,“H”heat-resisting,
“U”anti- UV.“*”other additional data (if any)
|
|||||
