Belt Cleaner

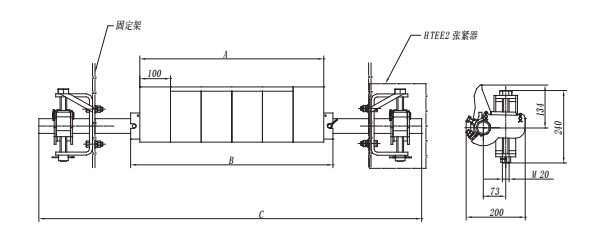

Type：HSC03-XXXX(E2X) 、 HSC04-XXXX(E2X)Secondary Cleaner＞＞Product assembly Diagram＞＞Product SpecificationsTypeBelt wid
| Type | Belt width B(mm) | Blade width A(mm) | Quantity of blade |
Quantity of blade
(polyurethane)
|
Mainframe B
(mm)
|
Circular tube for
secondary frame
ф48x6 (mm)
|
Weight
(kg)
|
| HSCXX-0650(E2 X ) | 650 | 600 | 4 | 2 | 700 | 1450 | 31 |
| HSCXX-0800(E2 X ) | 800 | 800 | 6 | 2 | 850 | 1600 | 34 |
| HSCXX-1000(E2 X ) | 1000 | 1000 | 8 | 2 | 1050 | 1800 | 37 |
| HSCXX-1200(E2 X ) | 1200 | 1200 | 10 | 2 | 1250 | 2000 | 70 |
| HSCXX-1400(E2 X ) | 1400 | 1400 | 12 | 2 | 1450 | 2200 | 43 |
| HSCXX-1600(E2 X ) | 1600 | 1600 | 14 | 2 | 1650 | 2400 | 46 |
| HSCXX-1800(E2 X ) | 1800 | 1800 | 16 | 2 | 1850 | 2800 | 49 |
| HSCXX-2000(E2 X ) | 2000 | 2000 | 18 | 2 | 2050 | 3000 | 52 |
| HSCXX-2200(E2 X ) | 2200 | 2200 | 20 | 2 | 2250 | 3200 | 55 |
|
Note：XX in HSCXX indicated product model“, 03”- Tungsten carbide blade“03”“04”- wear-resisting steel blade.
X in the brackets indicated the use occasion or attribute“, C”cold-resistant,“ H”heat-resisting,“ U”anti- UV.
“ *”other additional data (if any)
|
|||||||
