Belt Cleaner

Secondary Cleaner HSC01-XXXX(E2X)、HSC02-XXXX(E2X)

型号：HSC01-XXXX(E2X) 、HSC02-XXXX(E2X)Secondary Cleaner HSCXX-XXXX(XXX)Installed under the head (head pully) and deviat

    Detailed description
Type：Secondary Cleaner HSC01-XXXX(E2X) 、HSC02-XXXX(E2X)

Installed under the head (head pully) and deviating from the vertical centerline of the head pully about 55-110mm along the
running derection of the lower belt. Though the action of the blade and tensioner, the foreign substances on the surface of the
belt will be scraped and cleaned up, and the scraped substances will fall into the bin and be moved away. This cleaner will work
more effectively if used in combination with a primary cleaner. The cleaner works in coordination with a HTEE tensioner.

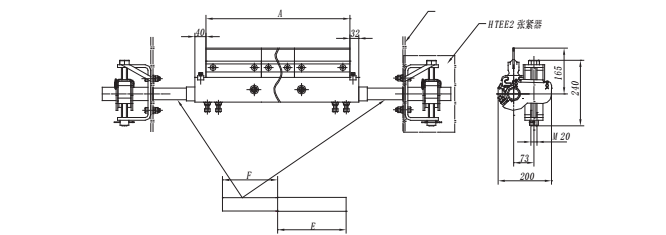

＞＞Product assembly Diagram



＞＞Product Specifications

Type Belt width B(mm) Blade width A(mm) Quantity of blade Dimension of secondary frame (mm)
Weight
(kg)
E Square tube
(50×50×5)
F circular tube
(Φ48×6)
HSCXX-0500(E2X) 500 400 2 200 180 34
HSCXX-0650(E2X) 650 600 3 300 260 38
HSCXX-0800(E2X) 800 800 4 390 340 43
HSCXX-1000(E2X) 1000 1000 5 390 340 47
HSCXX-1200(E2X) 1200 1200 6 390 340 52
HSCXX-1400(E2X) 1400 1400 7 390 340 56
HSCXX-1600(E2X) 1600 1600 8 390 340 61
HSCXX-1800(E2X) 1800 1800 9 390 340 65
HSCXX-2000(E2X) 2000 2000 10 390 340 70
HSCXX-2200(E2X) 2200 2200 11 390 340 74
Note：1.“XX”in HSCXX indicated product model, “01”- stainless steel blade, “02”- tungsten carbide blade.
2. X in the bracket indicates the use occasion or attributes,“C”cold-resistant,“H”heat-resisting,
“U”anti- UV.“*”other additional data(if any)
3. Working in coordination with HTEY tensioner called reversing cleaner, the model is HRC01-XXXX(Y2X)
and HRC02-XXXX(Y2X).
