Belt Cleaner

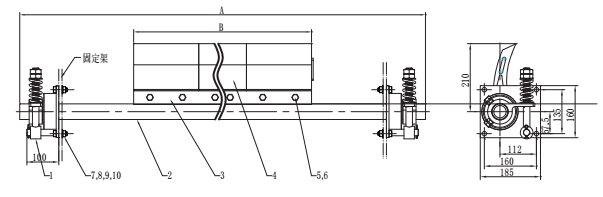

Herman Primary Cleaner, material of blade: PU
| Type | Belt width(mm) | Blade width A(mm) |
Quantity of
blades
|
Stent length B(mm) | Weight（kg ) |
| HPC07-0650(M1X) | 650 | 600 | 3 | 1450 | 28.5 |
| HPC07-0800(M1X) | 800 | 800 | 4 | 1600 | 32.5 |
| HPC07-1000(M1X) | 1000 | 1000 | 5 | 1800 | 36.5 |
| HPC07-1200(M1X) | 1200 | 1200 | 6 | 2000 | 40.5 |
| HPC07-1400(M1X) | 1400 | 1400 | 7 | 2200 | 46.5 |
| HPC07-1600(M1X) | 1600 | 1600 | 8 | 2400 | 52.5 |
| HPC07-1800(M1X) | 1800 | 1800 | 9 | 2800 | 58.5 |
| HPC07-2000(M1X) | 2000 | 2000 | 10 | 3000 | 64.5 |
| HPC07-2200(M1X) | 2200 | 2200 | 11 | 3200 | 70.5 |
|
Note：X in the bracket indicates the use occasion or attributes,“C”cold-resistant,“H”heat-resisting,
“U”anti- UV.“*”other additional data (if any)
|
|||||
