Belt Cleaner

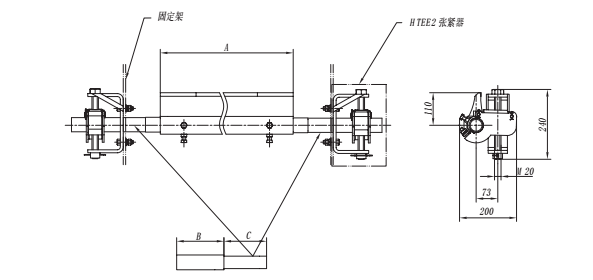

Type：HSC90-XXXX(E2X)＞＞Product assembly Diagram＞＞Product SpecificationsTypeBelt width(mm)Blade width A(mm)Dimension of
| Type |
Belt width
(mm)
|
Blade width A
(mm)
|
Dimension of secondary frame (mm) |
Weight
(kg)
|
||
|
B Square tube
(50×50×5)
|
C Circular tube
(Φ48×6)
|
|||||
| HSC90-0500(E2X) | 500 | 490 | 200 | 180 | 26 | |
| HSC90-0650(E2X) | 650 | 640 | 300 | 260 | 28 | |
| HSC90-0800(E2X) | 800 | 790 | 390 | 340 | 30 | |
| HSC90-1000(E2X) | 1000 | 990 | 390 | 340 | 32 | |
| HSC90-1200(E2X) | 1200 | 1190 | 390 | 340 | 34 | |
| HSC90-1400(E2X) | 1400 | 1390 | 390 | 340 | 36 | |
| HSC90-1600(E2X) | 1600 | 1590 | 390 | 340 | 38 | |
| HSC90-1800(E2X) | 1800 | 1790 | 390 | 340 | 40 | |
| HSC90-2000(E2X) | 2000 | 1990 | 390 | 340 | 42 | |
| HSC90-2200(E2X) | 2200 | 2190 | 390 | 340 | 44 | |
|
Note：X in the bracket indicates the use occasion or attributes,“C”cold-resistant,“H”heat-resisting,
“U”anti- UV.“*”other additional data (if any)
|
||||||
