Impact Cradle

HICXX-XXXX(XXXX) IMPACT CRADLE

Tpye：HICXX-XXXX(XXXX)IMPACT CRADLEIt intergrates polymeric slide bar plate, rubber aluminum alloy as a whole, with

    Detailed description
Tpye：HICXX-XXXX(XXXX) IMPACT CRADLE

It intergrates polymeric slide bar plate, rubber aluminum alloy as a whole, with adjustable
groove angle(30°- 45°). Installed at transit / discharge points, as an impact buffer, it can play a
role in protection for belt and improvement of the off-tracking problems resulted from impact
of materials on the belt. The length of the slide bar range from 1200mm, 1400mm and
1600mm which can also be customized to customer’s requirements.

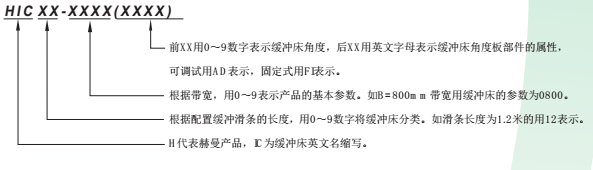

＞＞Numbering rules for impact cradle

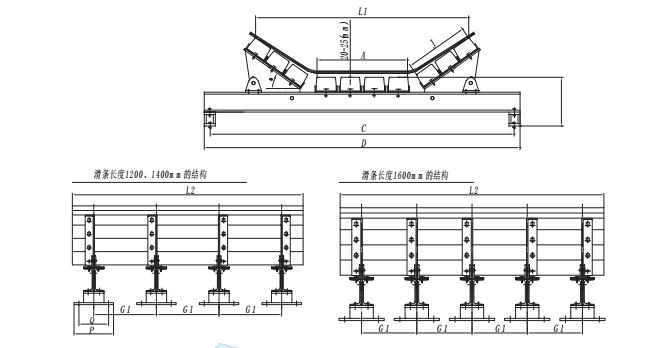

＞＞Product Assembly Diagram



＞＞Product Specifications

Type
Belt

Quantity

 Structual demension(mm) Angleθ Weight(kg)
width
B
slide
bars
 A C D J P Q d 30° 35° 45°
When the length
of the slide
bar is 1.2m
L1(mm) L1(mm) L1(mm)
HICXX-0800(XXXX) 800 7 340 1090 1150 224 170 130 M12 778±4 757±4 707±4 283
HICXX-1000(XXXX) 1000 7 380 1290 1350 240 220 170 M16 886±4 863±4 809±4 300
HICXX-1200(XXXX) 1200 10 460 1540 1600 324 260 200 M16 1111±4 1080±4 1008±4 397
HICXX-1400(XXXX) 1400 10 530 1740 1800 350 280 220 M16 1216±4 1183±4 1105±4 416
HICXX-1600(XXXX) 1600 13 600 1930 2010 450 350 280 M16 1459±4 1417±4 1316±4 506
HICXX-1800(XXXX) 1800 13 660 2220 2300 510 350 330 M16 1644±4 1596±4 1482±4 529
HICXX-2000(XXXX) 2000 16 750 2400 2480 660 400 330 M16 1780±4 1727±4 1602±4 585
ote：Size is only for reference.

length of slide bar L2(mm) 1200 1400 1600
Steel girder openning G1(mm) 315 380 335
